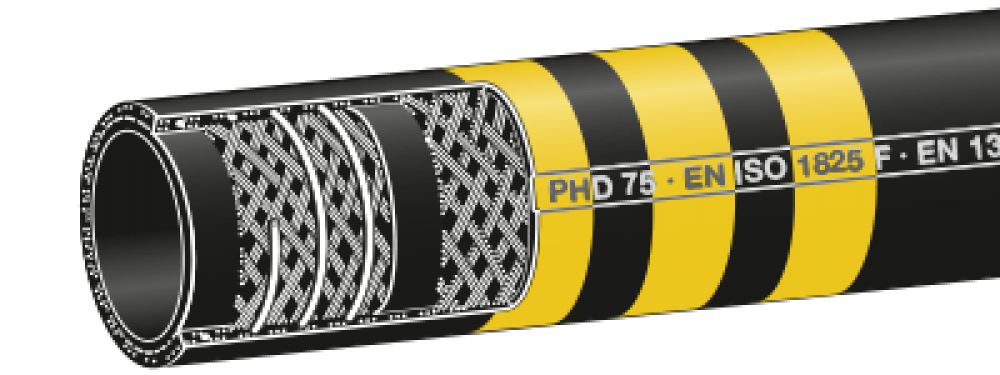

| Description | 'Yellow Band' aircraft refuelling hoses, suitable for all aviation gasolines and jet fuels (JET A 1), deicing fluids and motor oils. Temperature range -30° up to +90° Celsius. Electrical resistance between 10³ and 106 Ohm. |
|---|---|
| Application | For alternative fuelling and defuelling operation. Up to size 2½" the diameter remains stable even with low bending radii. |
| Comment | Special type 'PHD' with non metallic plastic helix and thick wall for enhanced lateral stability. |
| Lining | Nitrile rubber (NBR), antistatic, no fuel solubility |
|---|---|
| Reinforcements | Textile braids without metallic strands |
| Cover | Chloroprene (CR), conductive, ozone and flame resistant, highly abrasion resistant |
| Certificates | DNV • GL - type examination certificate for aviation refuelling hoses. |
| Marking | 3 yellow bands every 4 mtr. and continuous embossing |
| Marking Sample |
ELAFLEX PHD 75 F · EN ISO 1825 F · 20 BAR · EN 1361 C · EN 12115 NBR 1 · D · Ω/T · EN 1761 · EI 1529 C · VG 95 955 D · AS 2683 · Ω · PN 20 · · ContiTech · MADE IN GERMANY · 1Q-21 |
| Size | DN 38 to DN 75 |
